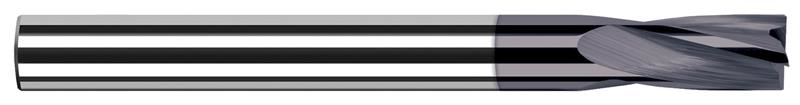

0.2656 in. (17/64) Cutter Diameter x 0.8750 in. (7/8) Flute Length 4 Flute AlTiN Coated Carbide Flat Bottom Counterbore

  • Item Code: 23417-C3
  • Brand: Harvey Tool
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • For spot facing or counterboring on irregular surfaces
    • Flat bottom (no dish) design allows spot facing or counterboring on irregular surfaces
    • Ideal for castings, rounded parts, concaved, or drafted surfaces
    • Can be used for flat bottom reaming or straightening misaligned holes
    • Center cutting
    • Ground with full cylindrical margin (not side cutting)
    • 15 degree helix
    • 4 flutes
    • Solid Carbide
    • AlTiN coating for increased performance in ferrous materials
    • AlTiN Nano coating for superior performance in ferrous and difficult to machine materials
    • CNC ground in the USA

Tech Specs

Back To Top
Fractional Cutting Diameter 17/64"
Material Solid Carbide
Overall Length 2.5000" (2-1/2)
Shank Diameter 0.3125" (5/16)
Brand Harvey Tool
Decimal Cutting Diameter 0.2656"
Flute Length 0.8750" (7/8)
Number of Flutes 4
Coating/Finish AlTiN
