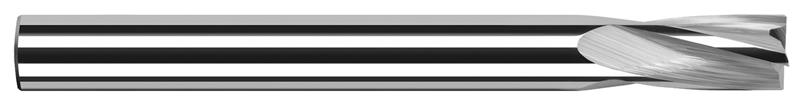

0.6250 in. (5/8) Cutter Diameter x 1.5000 in. (1-1/2) Flute Length 4 Flute Carbide Flat Bottom Counterbore

  • Item Code: 23440-HARVEY
  • Brand: Harvey Tool
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • For spot facing or counterboring on irregular surfaces
    • Flat bottom (no dish) design allows spot facing or counterboring on irregular surfaces
    • Ideal for castings, rounded parts, concaved, or drafted surfaces
    • Can be used for flat bottom reaming or straightening misaligned holes
    • Center cutting
    • Ground with full cylindrical margin (not side cutting)
    • 15 degree helix
    • 4 flutes
    • Solid Carbide
    • AlTiN coating for increased performance in ferrous materials
    • AlTiN Nano coating for superior performance in ferrous and difficult to machine materials
    • CNC ground in the USA

Tech Specs

Back To Top
Number of Flutes 4
Decimal Cutting Diameter 0.6250"
Flute Length 1.5000" (1-1/2)
Material Solid Carbide
Overall Length 3.5000" (3-1/2)
Fractional Cutting Diameter 5/8"
Shank Diameter 0.6250" (5/8)
Brand Harvey Tool
Coating/Finish None
