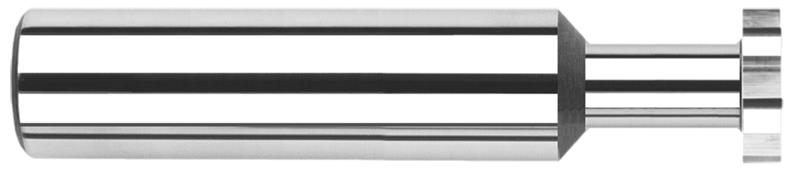

0.1875 in. (3/16) Cutter Diameter x 0.0290 in. Width x 0.1250 in. (1/8) Neck Length 6 Flute Carbide Retaining Ring Keyseat Cutter

  • Item Code: 23508
  • Brand: Harvey Tool
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Designed for milling retaining/snap ring grooves
    • Designed to mill proper slot widths for common retaining ring sizes
    • Cutter diameter, neck length, radial, and axial depths of cut optimized for internal retaining ring grooves per ANSI standards
    • Both sides of cutter are dished for clearance
    • Solid Carbide
    • CNC ground in the USA

Tech Specs

Back To Top
Cutter Width 0.0290"
Neck Diameter 0.1250" (1/8)
Number of Flutes 6
Radial Depth of Cut 0.0210"
Shank Diameter 0.1875" (3/16)
Overall Length 2.0000" (2)
Brand Harvey Tool
Decimal Diameter 0.1875"
Neck Length 0.1250" (1/8)
Coating/Finish None
Material Solid Carbide
Fractional Diameter 3/16"
