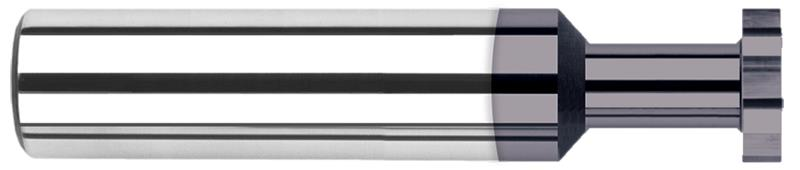

0.2500 in. (1/4) Cutter Diameter x 0.0460 in. Width x 0.1560 in. (5/32) Neck Length 6 Flute AlTiN Coated Carbide Retaining Ring Keyseat Cutter

  • Item Code: 23516-C3
  • Brand: Harvey Tool
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Designed for milling retaining/snap ring grooves
    • Designed to mill proper slot widths for common retaining ring sizes
    • Cutter diameter, neck length, radial, and axial depths of cut optimized for internal retaining ring grooves per ANSI standards
    • Both sides of cutter are dished for clearance
    • Solid Carbide
    • CNC ground in the USA

Tech Specs

Back To Top
Neck Length 0.1560" (5/32)
Radial Depth of Cut 0.0370"
Number of Flutes 6
Overall Length 2.5000" (2-1/2)
Neck Diameter 0.1560" (5/32)
Decimal Diameter 0.2500"
Coating/Finish AlTiN
Cutter Width 0.0460"
Brand Harvey Tool
Fractional Diameter 1/4"
Material Solid Carbide
Shank Diameter 0.2500" (1/4)
