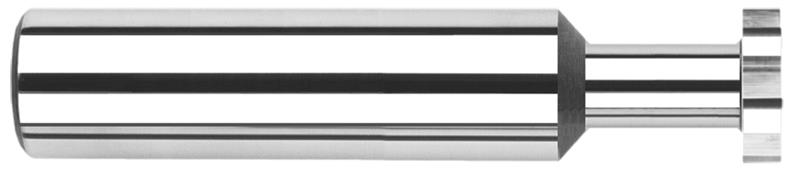

0.3125 in. (5/16) Cutter Diameter x 0.0560 in. Width x 0.1870 in. (3/16) Neck Length 6 Flute Carbide Retaining Ring Keyseat Cutter

  • Item Code: 23520
  • Brand: Harvey Tool
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Designed for milling retaining/snap ring grooves
    • Designed to mill proper slot widths for common retaining ring sizes
    • Cutter diameter, neck length, radial, and axial depths of cut optimized for internal retaining ring grooves per ANSI standards
    • Both sides of cutter are dished for clearance
    • Solid Carbide
    • CNC ground in the USA

Tech Specs

Back To Top
Neck Diameter 0.1870" (3/16)
Coating/Finish None
Fractional Diameter 5/16"
Material Solid Carbide
Radial Depth of Cut 0.0520"
Decimal Diameter 0.3125"
Number of Flutes 6
Shank Diameter 0.3125" (5/16)
Cutter Width 0.0560"
Neck Length 0.1870" (3/16)
Brand Harvey Tool
Overall Length 2.5000" (2-1/2)
