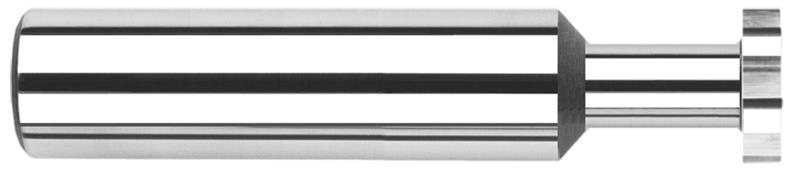

0.3750 in. (3/8) Cutter Diameter x 0.0860 in. Width x 0.2500 in. (1/4) Neck Length 8 Flute Carbide Retaining Ring Keyseat Cutter

  • Item Code: 23528
  • Brand: Harvey Tool
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Designed for milling retaining/snap ring grooves
    • Designed to mill proper slot widths for common retaining ring sizes
    • Cutter diameter, neck length, radial, and axial depths of cut optimized for internal retaining ring grooves per ANSI standards
    • Both sides of cutter are dished for clearance
    • Solid Carbide
    • CNC ground in the USA

Tech Specs

Back To Top
Coating/Finish None
Brand Harvey Tool
Neck Diameter 0.1870" (3/16)
Cutter Width 0.0860"
Radial Depth of Cut 0.0840"
Number of Flutes 8
Fractional Diameter 3/8"
Overall Length 2.5000" (2-1/2)
Shank Diameter 0.3750" (3/8)
Decimal Diameter 0.3750"
Material Solid Carbide
Neck Length 0.2500" (1/4)
