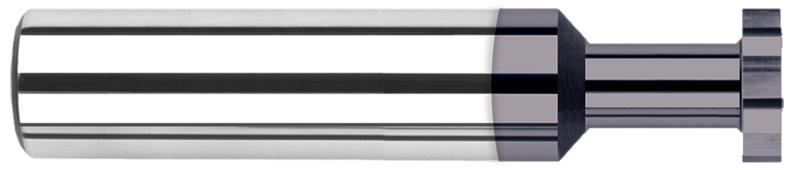

0.5000 in. (1/2) Cutter Diameter x 0.1200 in. Width x 0.3750 in. (3/8) Neck Length 8 Flute AlTiN Coated Carbide Retaining Ring Keyseat Cutter

  • Item Code: 23536-C3
  • Brand: Harvey Tool
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Designed for milling retaining/snap ring grooves
    • Designed to mill proper slot widths for common retaining ring sizes
    • Cutter diameter, neck length, radial, and axial depths of cut optimized for internal retaining ring grooves per ANSI standards
    • Both sides of cutter are dished for clearance
    • Solid Carbide
    • CNC ground in the USA

Tech Specs

Back To Top
Radial Depth of Cut 0.1150"
Neck Diameter 0.2500" (1/4)
Shank Diameter 0.5000" (1/2)
Brand Harvey Tool
Cutter Width 0.1200"
Neck Length 0.3750" (3/8)
Overall Length 3.0000" (3)
Fractional Diameter 1/2"
Number of Flutes 8
Coating/Finish AlTiN
Material Solid Carbide
Decimal Diameter 0.5000"
