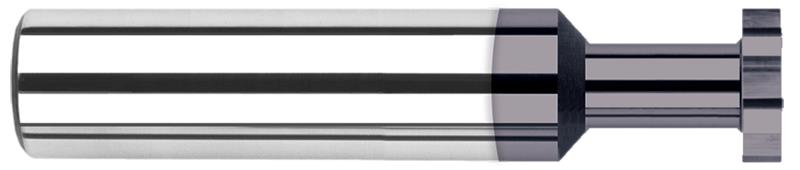

0.6250 in. (5/8) Cutter Diameter x 0.1200 in. Width x 0.5000 in. (1/2) Neck Length 8 Flute AlTiN Coated Carbide Retaining Ring Keyseat Cutter

  • Item Code: 23540-C3
  • Brand: Harvey Tool
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Designed for milling retaining/snap ring grooves
    • Designed to mill proper slot widths for common retaining ring sizes
    • Cutter diameter, neck length, radial, and axial depths of cut optimized for internal retaining ring grooves per ANSI standards
    • Both sides of cutter are dished for clearance
    • Solid Carbide
    • CNC ground in the USA

Tech Specs

Back To Top
Fractional Diameter 5/8"
Decimal Diameter 0.6250"
Neck Length 0.5000" (1/2)
Radial Depth of Cut 0.1460"
Shank Diameter 0.6250" (5/8)
Cutter Width 0.1200"
Material Solid Carbide
Overall Length 3.5000" (3-1/2)
Number of Flutes 8
Neck Diameter 0.3120" (5/16)
Brand Harvey Tool
Coating/Finish AlTiN
