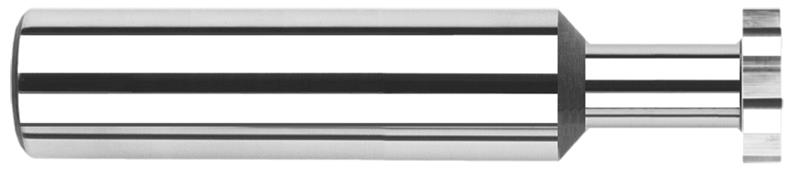

0.7500 in. (3/4) Cutter Diameter x 0.1740 in. Width x 0.0000 in. Neck Length 10 Flute Carbide Retaining Ring Keyseat Cutter

  • Item Code: 23548
  • Brand: Harvey Tool
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Designed for milling retaining/snap ring grooves
    • Designed to mill proper slot widths for common retaining ring sizes
    • Cutter diameter, neck length, radial, and axial depths of cut optimized for internal retaining ring grooves per ANSI standards
    • Both sides of cutter are dished for clearance
    • Solid Carbide
    • CNC ground in the USA

Tech Specs

Back To Top
Cutter Width 0.1740"
Overall Length 3.1740"
Shank Diameter 0.3750" (3/8)
Fractional Diameter 3/4"
Neck Diameter 0.1870" (3/16)
Radial Depth of Cut 0.1770"
Coating/Finish None
Decimal Diameter 0.7500"
Material Solid Carbide
Neck Length 0.0000"
Brand Harvey Tool
Number of Flutes 10
