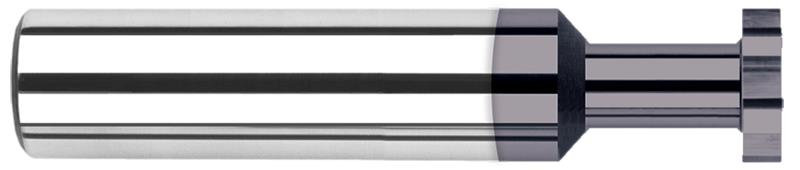

1.0000 in. (1) Cutter Diameter x 0.2090 in. Width x 0.0000 in. Neck Length 12 Flute AlTiN Coated Carbide Retaining Ring Keyseat Cutter

  • Item Code: 23564-C3
  • Brand: Harvey Tool
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Designed for milling retaining/snap ring grooves
    • Designed to mill proper slot widths for common retaining ring sizes
    • Cutter diameter, neck length, radial, and axial depths of cut optimized for internal retaining ring grooves per ANSI standards
    • Both sides of cutter are dished for clearance
    • Solid Carbide
    • CNC ground in the USA

Tech Specs

Back To Top
Cutter Width 0.2090"
Overall Length 3.2090"
Shank Diameter 0.5000" (1/2)
Brand Harvey Tool
Number of Flutes 12
Neck Length 0.0000"
Decimal Diameter 1.0000"
Fractional Diameter 1"
Radial Depth of Cut 0.2400"
Material Solid Carbide
Coating/Finish AlTiN
Neck Diameter 0.5000" (1/2)
