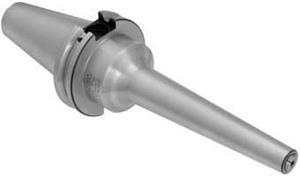

CAT40 x SBL6 - 3 Inch SlimFIT Tool Holder
- Item Code: 23654
- Brand: Techniks
- Unit Size: 1
Description
Techniks SlimFIT Collet Chucks are individually lab tested, inspected, and certified for quality. The holder is balanced to 25,000 RPM at G2.5 Tolerance so that T.I.R. is 0.0001" or better. Coolant-thru is a standard feature. Certified holders are backed by our 100% Performance Guarantee.
Tech Specs
Back To Top| Body Diameter-Workpiece Side (in) | 0.551 |
|---|---|
| Capacity Range (mm) | 2.39 - 6.35mm |
| Collet Series | SlimFIT 6 |
| Overall Length (in) | 5.68 |
| Type | V-Flange SlimFIT Holder |
| Body Diameter-Workpiece Side (mm) | 14 |
| Overall Length (mm) | 144.3 |
| Gage Length-Face Contact (in) | 2.87 |
| Unit of Tool | Metric or Inch |
| Overall Diameter (in) | 2.5 |
| Brand | Techniks |
| Capacity Range (in) | 0.094" - 0.25" |
| Lock Nut Diameter (in) | N/A |
| Overall Diameter (mm) | 63.5 |
| Gage Length (in) | 3 |
| Gage Length (mm) | 76.2 |
| Gage Length-Face Contact (mm) | 73 |
| Lock Nut Diameter (mm) | N/A |
| Style | Single Ended |
| Balanced to | 25,000 RPM at G2.5 |
| Taper | CAT40 |
| Material | 8620 Steel |
