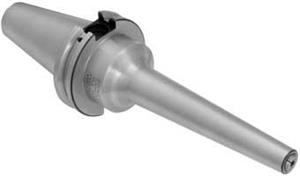

CAT40 x SBL6 - 4 Inch SlimFIT Tool Holder
- Item Code: 23656
- Brand: Techniks
- Unit Size: 1
Description
Techniks SlimFIT Collet Chucks are individually lab tested, inspected, and certified for quality. The holder is balanced to 25,000 RPM at G2.5 Tolerance so that T.I.R. is 0.0001" or better. Coolant-thru is a standard feature. Certified holders are backed by our 100% Performance Guarantee.
Tech Specs
Back To Top| Body Diameter-Workpiece Side (mm) | 14 |
|---|---|
| Overall Length (in) | 6.68 |
| Balanced to | 25,000 RPM at G2.5 |
| Gage Length (mm) | 101.6 |
| Lock Nut Diameter (in) | N/A |
| Collet Series | SlimFIT 6 |
| Type | V-Flange SlimFIT Holder |
| Lock Nut Diameter (mm) | N/A |
| Taper | CAT40 |
| Overall Length (mm) | 169.7 |
| Style | Single Ended |
| Body Diameter-Workpiece Side (in) | 0.551 |
| Brand | Techniks |
| Gage Length (in) | 4 |
| Gage Length-Face Contact (mm) | 98.4 |
| Material | 8620 Steel |
| Overall Diameter (in) | 2.5 |
| Unit of Tool | Metric or Inch |
| Capacity Range (in) | 0.094" - 0.25" |
| Capacity Range (mm) | 2.39 - 6.35mm |
| Gage Length-Face Contact (in) | 3.87 |
| Overall Diameter (mm) | 63.5 |
