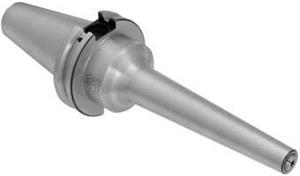

CAT40 x SBL6 - 6 Inch SlimFIT Tool Holder
- Item Code: 23658
- Brand: Techniks
- Unit Size: 1
Description
Techniks SlimFIT Collet Chucks are individually lab tested, inspected, and certified for quality. The holder is balanced to 25,000 RPM at G2.5 Tolerance so that T.I.R. is 0.0001" or better. Coolant-thru is a standard feature. Certified holders are backed by our 100% Performance Guarantee.
Tech Specs
Back To Top| Capacity Range (mm) | 2.39 - 6.35mm |
|---|---|
| Gage Length (in) | 6 |
| Gage Length-Face Contact (in) | 5.87 |
| Overall Length (in) | 8.68 |
| Taper | CAT40 |
| Type | V-Flange SlimFIT Holder |
| Brand | Techniks |
| Overall Diameter (mm) | 63.5 |
| Overall Length (mm) | 220.5 |
| Balanced to | 25,000 RPM at G2.5 |
| Lock Nut Diameter (in) | N/A |
| Body Diameter-Workpiece Side (mm) | 14 |
| Capacity Range (in) | 0.094" - 0.25" |
| Collet Series | SlimFIT 6 |
| Gage Length-Face Contact (mm) | 149.2 |
| Material | 8620 Steel |
| Overall Diameter (in) | 2.5 |
| Unit of Tool | Metric or Inch |
| Body Diameter-Workpiece Side (in) | 0.551 |
| Style | Single Ended |
| Gage Length (mm) | 152.4 |
| Lock Nut Diameter (mm) | N/A |
