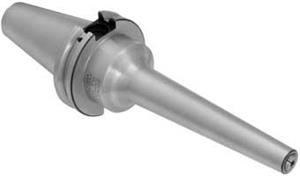

CAT40 x SBL6 - 8 Inch SlimFIT Tool Holder
- Item Code: 23659
- Brand: Techniks
- Unit Size: 1
Description
Techniks SlimFIT Collet Chucks are individually lab tested, inspected, and certified for quality. The holder is balanced to 25,000 RPM at G2.5 Tolerance so that T.I.R. is 0.0001" or better. Coolant-thru is a standard feature. Certified holders are backed by our 100% Performance Guarantee.
Tech Specs
Back To Top| Capacity Range (in) | 0.094" - 0.25" |
|---|---|
| Overall Length (mm) | 271.3 |
| Gage Length (in) | 8 |
| Unit of Tool | Metric or Inch |
| Body Diameter-Workpiece Side (in) | 0.551 |
| Overall Diameter (in) | 2.5 |
| Style | Single Ended |
| Capacity Range (mm) | 2.39 - 6.35mm |
| Lock Nut Diameter (in) | N/A |
| Brand | Techniks |
| Overall Diameter (mm) | 63.5 |
| Body Diameter-Workpiece Side (mm) | 14 |
| Overall Length (in) | 10.68 |
| Balanced to | 25,000 RPM at G2.5 |
| Gage Length (mm) | 203.2 |
| Gage Length-Face Contact (in) | 7.87 |
| Gage Length-Face Contact (mm) | 200 |
| Taper | CAT40 |
| Type | V-Flange SlimFIT Holder |
| Collet Series | SlimFIT 6 |
| Material | 8620 Steel |
| Lock Nut Diameter (mm) | N/A |
