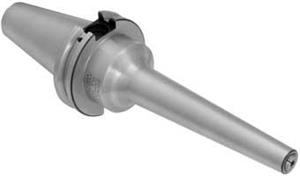

CAT50 x SBL6 - 3.5 Inch SlimFIT Tool Holder
- Item Code: 23672
- Brand: Techniks
- Unit Size: 1
Description
Techniks SlimFIT Collet Chucks are individually lab tested, inspected, and certified for quality. The holder is balanced to 25,000 RPM at G2.5 Tolerance so that T.I.R. is 0.0001" or better. Coolant-thru is a standard feature. Certified holders are backed by our 100% Performance Guarantee.
Tech Specs
Back To Top| Gage Length (in) | 3.5 |
|---|---|
| Gage Length-Face Contact (in) | 3.37 |
| Gage Length-Face Contact (mm) | 85.5 |
| Lock Nut Diameter (in) | N/A |
| Overall Length (in) | 7.5 |
| Overall Length (mm) | 190.5 |
| Body Diameter-Workpiece Side (in) | 0.551 |
| Overall Diameter (mm) | 98.43 |
| Unit of Tool | Metric or Inch |
| Balanced to | 25,000 RPM at G2.5 |
| Capacity Range (mm) | 2.39 - 6.35mm |
| Collet Series | SlimFIT 6 |
| Lock Nut Diameter (mm) | N/A |
| Overall Diameter (in) | 3.88 |
| Taper | CAT50 |
| Gage Length (mm) | 88.9 |
| Material | 8620 Steel |
| Style | Single Ended |
| Body Diameter-Workpiece Side (mm) | 14 |
| Brand | Techniks |
| Capacity Range (in) | 0.094" - 0.25" |
| Type | V-Flange SlimFIT Holder |
