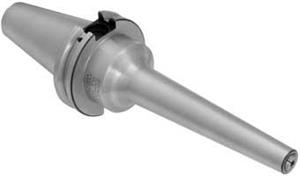

CAT50 x SBL6 - 6 Inch SlimFIT Tool Holder
- Item Code: 23676
- Brand: Techniks
- Unit Size: 1
Description
Techniks SlimFIT Collet Chucks are individually lab tested, inspected, and certified for quality. The holder is balanced to 25,000 RPM at G2.5 Tolerance so that T.I.R. is 0.0001" or better. Coolant-thru is a standard feature. Certified holders are backed by our 100% Performance Guarantee.
Tech Specs
Back To Top| Gage Length-Face Contact (in) | 5.87 |
|---|---|
| Lock Nut Diameter (mm) | N/A |
| Unit of Tool | Metric or Inch |
| Balanced to | 25,000 RPM at G2.5 |
| Body Diameter-Workpiece Side (in) | 0.551 |
| Brand | Techniks |
| Capacity Range (in) | 0.094" - 0.25" |
| Gage Length-Face Contact (mm) | 149 |
| Lock Nut Diameter (in) | N/A |
| Body Diameter-Workpiece Side (mm) | 14 |
| Overall Length (in) | 10 |
| Type | V-Flange SlimFIT Holder |
| Capacity Range (mm) | 2.39 - 6.35mm |
| Gage Length (in) | 6 |
| Overall Length (mm) | 254 |
| Gage Length (mm) | 152.4 |
| Overall Diameter (in) | 3.88 |
| Overall Diameter (mm) | 98.43 |
| Style | Single Ended |
| Collet Series | SlimFIT 6 |
| Material | 8620 Steel |
| Taper | CAT50 |
