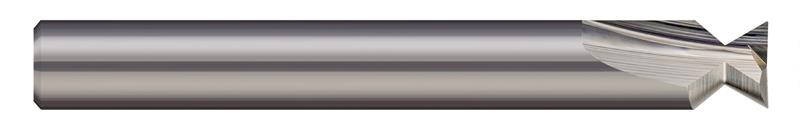

0.3620 in. Cutter Diameter x 0.0620 in. (1/16) Radius x 48 Deg. Included 2 Flute Carbide Corner Radius Dovetail Cutter With Drop Hole Allowance

  • Item Code: 23835
  • Brand: Harvey Tool
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Designed to the Standards Suggested by the O-Ring Division of Parker Hannifin Corporation (ORD 5700/USA, ORD 5700)
    • Designed for Milling Full Dovetail Grooves with Drop Hole Allowance
    • Undersized Cutter Design Allows Climb Milling Both Faces of Groove for Improved Finish
    • Mills Both Top and Bottom Radii
    • 24 degree per side, 48 degree included
    • 2 Straight Flutes
    • Center Cutting
    • Solid Carbide
    • CNC ground in the USA

Tech Specs

Back To Top
O Ring X Section 0.2750"
Radius Center 0.2190"
Brand Harvey Tool
Included Angle 48
Angle per Side 24
Coating/Finish None
Number of Flutes 2
Overall Length 2.5000" (2-1/2)
Shank Diameter 0.3750" (3/8)
Decimal Cutting Diameter 0.3620"
Radius Decimal 0.0620"
Material Solid Carbide
Neck Diameter 0.2370"
Neck Radius 0.0150" (1/64)
Radius Fractional 1/16"
