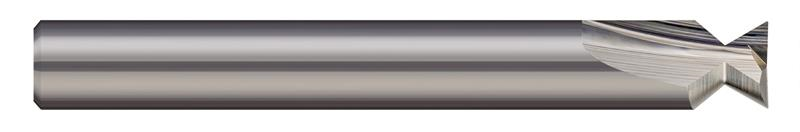

0.4880 in. Cutter Diameter x 0.0930 in. (3/32) Radius x 48 Deg. Included 2 Flute Carbide Corner Radius Dovetail Cutter With Drop Hole Allowance

  • Item Code: 23842
  • Brand: Harvey Tool
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Designed to the Standards Suggested by the O-Ring Division of Parker Hannifin Corporation (ORD 5700/USA, ORD 5700)
    • Designed for Milling Full Dovetail Grooves with Drop Hole Allowance
    • Undersized Cutter Design Allows Climb Milling Both Faces of Groove for Improved Finish
    • Mills Both Top and Bottom Radii
    • 24 degree per side, 48 degree included
    • 2 Straight Flutes
    • Center Cutting
    • Solid Carbide
    • CNC ground in the USA

Tech Specs

Back To Top
Decimal Cutting Diameter 0.4880"
O Ring X Section 0.3750" (3/8)
Radius Center 0.2990"
Angle per Side 24
Material Solid Carbide
Neck Diameter 0.3270"
Radius Fractional 3/32"
Coating/Finish None
Neck Radius 0.0200"
Number of Flutes 2
Brand Harvey Tool
Included Angle 48
Overall Length 3.0000" (3)
Radius Decimal 0.0930"
Shank Diameter 0.5000" (1/2)
