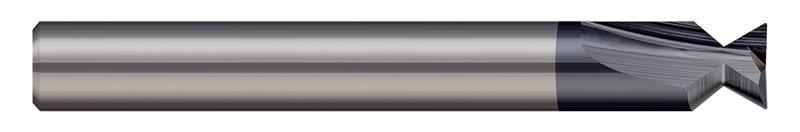

0.1130 in. Cutter Diameter x 0.0310 in. (1/32) Radius x 48 Deg. Included 2 Flute AlTiN Coated Carbide Dovetail Cutter Without Drop Hole Allowance

  • Item Code: 23921-C3
  • Brand: Harvey Tool
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Designed to the standards suggested by the O-Ring division of Parker Hannifin Corporations (tools meet both specs: ORD 5700/USA, ORD 5700)
    • Designed for milling half dovetails or full dovetails with no drop hole allowance
    • Mills bottom radius only
    • 24 degree per side, 48 degree included
    • 2 straight flutes
    • Center cutting
    • Solid carbide
    • CNC ground in the USA

Tech Specs

Back To Top
Brand Harvey Tool
Neck Diameter 0.0440"
Decimal Cutting Diameter 0.1130"
Included Angle 48
Length of Cut 0.1150"
Material Solid Carbide
Radius Fractional 1/32"
Shank Diameter 0.1250" (1/8)
O Ring X Section 0.1390"
Angle per Side 24
Number of Flutes 2
Overall Length 1.5000" (1-1/2)
Radius Decimal 0.0310"
Coating/Finish AlTiN
