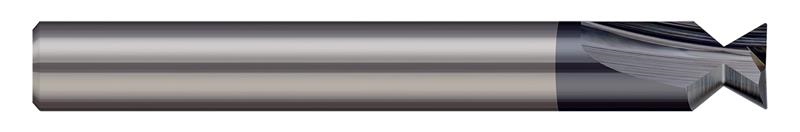

0.2310 in. Cutter Diameter x 0.0620 in. (1/16) Radius x 48 Deg. Included 2 Flute AlTiN Coated Carbide Dovetail Cutter Without Drop Hole Allowance

  • Item Code: 23935-C3
  • Brand: Harvey Tool
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Designed to the standards suggested by the O-Ring division of Parker Hannifin Corporations (tools meet both specs: ORD 5700/USA, ORD 5700)
    • Designed for milling half dovetails or full dovetails with no drop hole allowance
    • Mills bottom radius only
    • 24 degree per side, 48 degree included
    • 2 straight flutes
    • Center cutting
    • Solid carbide
    • CNC ground in the USA

Tech Specs

Back To Top
Brand Harvey Tool
Included Angle 48
Material Solid Carbide
Overall Length 2.0000" (2)
Shank Diameter 0.2500" (1/4)
Coating/Finish AlTiN
Angle per Side 24
Neck Diameter 0.0860"
Radius Decimal 0.0620"
O Ring X Section 0.2750"
Radius Fractional 1/16"
Decimal Cutting Diameter 0.2310"
Length of Cut 0.2380"
Number of Flutes 2
