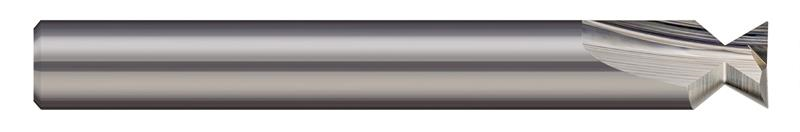

0.3150 in. (8 mm) Cutter Diameter x 0.0930 in. (3/32) Radius x 48 Deg. Included 2 Flute Carbide Dovetail Cutter Without Drop Hole Allowance

  • Item Code: 23942
  • Brand: Harvey Tool
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Designed to the standards suggested by the O-Ring division of Parker Hannifin Corporations (tools meet both specs: ORD 5700/USA, ORD 5700)
    • Designed for milling half dovetails or full dovetails with no drop hole allowance
    • Mills bottom radius only
    • 24 degree per side, 48 degree included
    • 2 straight flutes
    • Center cutting
    • Solid carbide
    • CNC ground in the USA

Tech Specs

Back To Top
Decimal Cutting Diameter 0.3150"
Neck Diameter 0.1280"
Radius Decimal 0.0930"
Coating/Finish None
Included Angle 48
Material Solid Carbide
Number of Flutes 2
O Ring X Section 0.3750" (3/8)
Overall Length 2.5000" (2-1/2)
Brand Harvey Tool
Length of Cut 0.3230"
Radius Fractional 3/32"
Angle per Side 24
Metric Cutting Diameter 8.00 mm
Shank Diameter 0.3750" (3/8)
