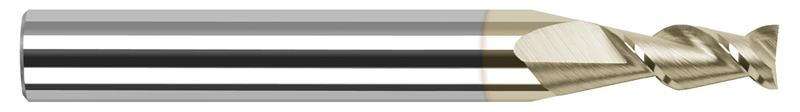

0.0470 in. (3/64) Cutter Diameter x 0.1410 in. Length of Cut 2 Flute ZrN Coated Carbide 45 Deg. Helix Square End Mill
- Item Code: 24147-C7
- Brand: Harvey Tool
- Unit Size: 1
Description
For Aluminum Alloys
Features
Back To Top- 2 flute, high helix design improves results in aluminum and other non-ferrous applications
- 45 degree helix for faster chip removal and better finish
- h6 shank tolerance for high precision tool holders?
- Center cutting
- Solid carbide
- CNC ground in the USA
Tech Specs
Back To Top| Length of Cut Multiple | (3x) |
|---|---|
| Decimal Diameter | 0.0470" |
| Length of Cut | 0.1410" |
| Overall Length | 1.5000" (1-1/2) |
| Coating/Finish | ZrN |
| Shank Diameter | 0.1250" (1/8) |
| Brand | Harvey Tool |
| Fractional Diameter | 3/64" |
| Material | Solid Carbide |
| Number of Flutes | 2 |
