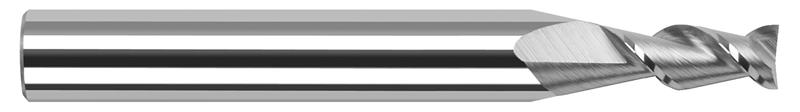

0.0930 in. (3/32) Cutter Diameter x 0.2790 in. Length of Cut 2 Flute Carbide 45 Deg. Helix Square End Mill

  • Item Code: 24193-HARVEY
  • Brand: Harvey Tool
  • Unit Size: 1

Description

For Aluminum Alloys

Features Tech Specs

Features

Back To Top
    • 2 flute, high helix design improves results in aluminum and other non-ferrous applications
    • 45 degree helix for faster chip removal and better finish
    • h6 shank tolerance for high precision tool holders?
    • Center cutting
    • Solid carbide
    • CNC ground in the USA

Tech Specs

Back To Top
Overall Length 1.5000" (1-1/2)
Length of Cut 0.2790"
Decimal Diameter 0.0930"
Number of Flutes 2
Coating/Finish None
Fractional Diameter 3/32"
Material Solid Carbide
Length of Cut Multiple (3x)
Shank Diameter 0.1250" (1/8)
Brand Harvey Tool
