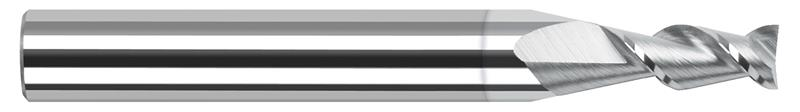

0.1875 in. (3/16) Cutter Diameter x 0.6250 in. (5/8) Length of Cut 2 Flute TiB2 Coated Carbide 45 Deg. Helix Square End Mill

  • Item Code: 24212-C8
  • Brand: Harvey Tool
  • Unit Size: 1

Description

For Aluminum Alloys

Features Tech Specs

Features

Back To Top
    • 2 flute, high helix design improves results in aluminum and other non-ferrous applications
    • 45 degree helix for faster chip removal and better finish
    • h6 shank tolerance for high precision tool holders?
    • Center cutting
    • Solid carbide
    • CNC ground in the USA

Tech Specs

Back To Top
Shank Diameter 0.1875" (3/16)
Coating/Finish TiB2
Length of Cut 0.6250" (5/8)
Number of Flutes 2
Overall Length 2.0000" (2)
Fractional Diameter 3/16"
Material Solid Carbide
Brand Harvey Tool
Decimal Diameter 0.1875"
Length of Cut Multiple (3x)
