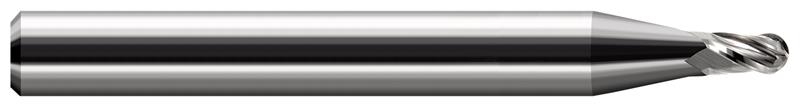

0.0080 in. (.2 mm) Cutter Diameter x 0.0120 in. Length of Cut 2 Flute Carbide Ball End Mill
- Item Code: 24508-HARVEY
- Brand: Harvey Tool
- Unit Size: 1
Description
Stub and Standard
Features
Back To Top- Cutter diameter down to .002"
- Center cutting
- Solid carbide
- CNC ground in the USA
Tech Specs
Back To Top| Overall Length | 1.5000" (1-1/2) |
|---|---|
| Coating | None |
| Shank Diameter | 0.1250" (1/8) |
| Number of Flutes | 2 |
| Length of Cut Multiple | (1.5x) |
| Material | Solid Carbide |
| Decimal Cutting Diameter | 0.0080" |
| Metric Cutting Diameter | 0.20 mm |
| Brand | Harvey Tool |
| Length of Cut | 0.0120" |
