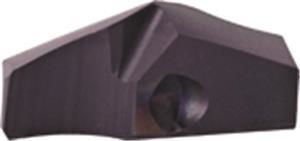

19mm Diameter Drill Body, 2 flutes, Carbide, FIREX Coated, 140° Point, Right Hand Cut
- Item Code: 2485-19.00
- Brand: Guhring
- Unit Size: 1
Description
The RT800 WP drill is available in 3xD, 5xD, 7xD coolant fed holder styles in diameter ranging from 16.0 mm to 40.5 mm. The holder is a side lock design that allows for quick change cycles. The bright finished insert is designed specifically for aluminum. The TiN coated design is excellent for mild steel while the FIREX® insert provides the ultimate heat and abrasion resistance.
Tech Specs
Back To Top| Overall Length (mm) | 8 |
|---|---|
| Coolant | without |
| Series | 2485 |
| Brand | Guhring |
| Material | Solid Carbide |
| Product Type | Drill Body |
| Cutting Direction | Right Hand |
| Diameter (mm) | 19 |
| Decimal Inch (dia) | 0.7480 |
| Length of Cut (mm) | 19 |
| Number of flutes | 2 |
| Point Angle | 140° |
| Coating/Finish | FIREX |
| Flute Length (mm) | 19 |
