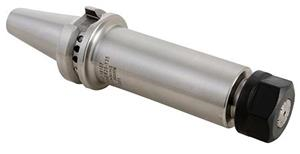

BT30 x ER20 - 60mm DualDRIVE Tool Holder
- Item Code: 25.122.20.060
- Brand: Techniks
- Unit Size: 1
Description
DualDRIVE holders are compatible with Dual-Contact spindle designs and standard spindles. DualDRIVE offers improved rigidity for reduced vibration and improved T.I.R.. Techniks DualDRIVE Collet Chucks are balanced to 25,000 RPM at G2.5 tolerance. Each holder is Techniks Certified for balance and accuracy and comes with its individual lab report. DualDRIVE holders are coolant capable through the spindle. The design offers better rigidity and reduced vibration for improved performance at high metal removal rates and when machining at extended lengths.
Tech Specs
Back To Top| Gage Length-Face Contact (mm) | 58 |
|---|---|
| Style | Single Ended DualDRIVE |
| Body Diameter-Workpiece Side (in) | 1.339 |
| Material | 8620 Steel |
| Overall Diameter (mm) | 46 |
| Balanced to | 25,000 RPM at G2.5 |
| Gage Length-Face Contact (in) | 2.28 |
| Lock Nut Diameter (mm) | 35.1 |
| Overall Length (in) | 4.26 |
| Overall Length (mm) | 108.2 |
| Body Diameter-Workpiece Side (mm) | 34 |
| Lock Nut Diameter (in) | 1.38 |
| Gage Length (in) | 2.36 |
| Gage Length (mm) | 60 |
| Collet Series | ER20 |
| Overall Diameter (in) | 1.81 |
| Taper | BT30 |
| Type | DualDRIVE Collet Chuck |
| Capacity Range (in) | 0.019" - 0.55" |
| Unit of Tool | Metric or Inch |
| Brand | Techniks |
| Capacity Range (mm) | 0.5 - 14mm |
