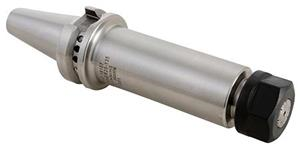

BT30 x ER20 - 105mm DualDRIVE Tool Holder
- Item Code: 25.122.20.105
- Brand: Techniks
- Unit Size: 1
Description
DualDRIVE holders are compatible with Dual-Contact spindle designs and standard spindles. DualDRIVE offers improved rigidity for reduced vibration and improved T.I.R.. Techniks DualDRIVE Collet Chucks are balanced to 25,000 RPM at G2.5 tolerance. Each holder is Techniks Certified for balance and accuracy and comes with its individual lab report. DualDRIVE holders are coolant capable through the spindle. The design offers better rigidity and reduced vibration for improved performance at high metal removal rates and when machining at extended lengths.
Tech Specs
Back To Top| Gage Length-Face Contact (mm) | 103 |
|---|---|
| Overall Length (in) | 6.04 |
| Overall Length (mm) | 153.4 |
| Balanced to | 25,000 RPM at G2.5 |
| Gage Length (in) | 4.13 |
| Lock Nut Diameter (mm) | 35.1 |
| Overall Diameter (in) | 1.81 |
| Body Diameter-Workpiece Side (in) | 1.339 |
| Collet Series | ER20 |
| Overall Diameter (mm) | 46 |
| Body Diameter-Workpiece Side (mm) | 34 |
| Gage Length (mm) | 105 |
| Material | 8620 Steel |
| Taper | BT30 |
| Type | DualDRIVE Collet Chuck |
| Unit of Tool | Metric or Inch |
| Capacity Range (mm) | 0.5 - 14mm |
| Gage Length-Face Contact (in) | 4.06 |
| Style | Single Ended DualDRIVE |
| Brand | Techniks |
| Capacity Range (in) | 0.019" - 0.55" |
| Lock Nut Diameter (in) | 1.38 |
