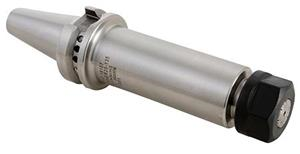

BT30 x ER32 - 60mm DualDRIVE Tool Holder
- Item Code: 25.122.32.060
- Brand: Techniks
- Unit Size: 1
Description
DualDRIVE holders are compatible with Dual-Contact spindle designs and standard spindles. DualDRIVE offers improved rigidity for reduced vibration and improved T.I.R.. Techniks DualDRIVE Collet Chucks are balanced to 25,000 RPM at G2.5 tolerance. Each holder is Techniks Certified for balance and accuracy and comes with its individual lab report. DualDRIVE holders are coolant capable through the spindle. The design offers better rigidity and reduced vibration for improved performance at high metal removal rates and when machining at extended lengths.
Tech Specs
Back To Top| Overall Length (in) | 4.26 |
|---|---|
| Balanced to | 25,000 RPM at G2.5 |
| Body Diameter-Workpiece Side (in) | 1.969 |
| Body Diameter-Workpiece Side (mm) | 50 |
| Capacity Range (in) | 0.043" - 0.83" |
| Gage Length-Face Contact (in) | 2.28 |
| Overall Length (mm) | 108.2 |
| Capacity Range (mm) | 1.1 - 21mm |
| Collet Series | ER32 |
| Lock Nut Diameter (mm) | 50 |
| Style | Single Ended DualDRIVE |
| Brand | Techniks |
| Taper | BT30 |
| Type | DualDRIVE Collet Chuck |
| Overall Diameter (in) | 1.81 |
| Lock Nut Diameter (in) | 1.97 |
| Unit of Tool | Metric or Inch |
| Gage Length (mm) | 60 |
| Gage Length-Face Contact (mm) | 58 |
| Gage Length (in) | 2.36 |
| Material | 8620 Steel |
| Overall Diameter (mm) | 46 |
