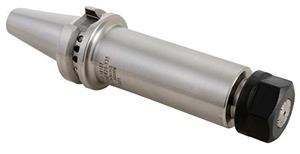

BT30 x ER32 - 90mm DualDRIVE Tool Holder
- Item Code: 25.122.32.090
- Brand: Techniks
- Unit Size: 1
Description
DualDRIVE holders are compatible with Dual-Contact spindle designs and standard spindles. DualDRIVE offers improved rigidity for reduced vibration and improved T.I.R.. Techniks DualDRIVE Collet Chucks are balanced to 25,000 RPM at G2.5 tolerance. Each holder is Techniks Certified for balance and accuracy and comes with its individual lab report. DualDRIVE holders are coolant capable through the spindle. The design offers better rigidity and reduced vibration for improved performance at high metal removal rates and when machining at extended lengths.
Tech Specs
Back To Top| Gage Length (mm) | 90 |
|---|---|
| Capacity Range (mm) | 1.1 - 21mm |
| Body Diameter-Workpiece Side (in) | 1.969 |
| Capacity Range (in) | 0.043" - 0.83" |
| Gage Length (in) | 3.54 |
| Lock Nut Diameter (mm) | 50 |
| Overall Length (in) | 5.44 |
| Style | Single Ended DualDRIVE |
| Collet Series | ER32 |
| Material | 8620 Steel |
| Overall Diameter (mm) | 46 |
| Gage Length-Face Contact (in) | 3.46 |
| Lock Nut Diameter (in) | 1.97 |
| Unit of Tool | Metric or Inch |
| Body Diameter-Workpiece Side (mm) | 50 |
| Overall Diameter (in) | 1.81 |
| Taper | BT30 |
| Type | DualDRIVE Collet Chuck |
| Balanced to | 25,000 RPM at G2.5 |
| Brand | Techniks |
| Gage Length-Face Contact (mm) | 88 |
| Overall Length (mm) | 138.2 |
