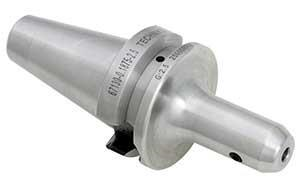

BT30 x 1/8 Inch Diameter x 2-1/2 Inch Length DualDRIVE End Mill Holder
- Item Code: 25.653.52.250
- Brand: Techniks
- Unit Size: 1
Description
DualDRIVE Spindles offer a one piece design that is compatible with both dual contact and standard spindles. DualDRIVE offers improved rigidity for reduced vibration and improved T.I.R.. Techniks End Mills offer an Industry Leading high precision bore at H5 tolerance, are lab certified, and are balanced at 15,000 RPM.
Features
Back To Top- New one-piece design for dual-contact spindles
- High precision bore (H5) is best in industry
- Balanced to 15,000 RPM at G6.3
- Better rigidity and reduced vibration
- Improved performance at high metal removal rates or extended lengths
- Techniks Certified for bore and taper tolerances
Tech Specs
Back To Top| Nose Diameter (in) | 0.68 |
|---|---|
| Bore Inside Diameter (in) | 0.125 |
| Overall Length (mm) | 111.9 |
| Material | 8620 Steel |
| Style | Single End DualDRIVE |
| Bore Inside Diameter (mm) | 3.2 |
| Overall Length (in) | 4.4 |
| Gage Length (in) | 2.5 |
| Nose Diameter (mm) | 17.3 |
| Brand | Techniks |
| Gage Length (mm) | 63.5 |
| Taper Type | BT30 |
| Type | End Mill Holder |
