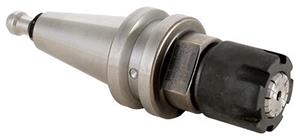

65mm Length x ISO25 x ER25 Slotted Nut & Pull Stud Collet Chuck

  • Item Code: 25077
  • Brand: Techniks
  • Unit Size: 1

Description

Techniks ISO Collet Chucks are balanced to 40,000 RPM at G2.5 tolerance. They are individually lab tested for accuracy and balance and come with their individual performance report. Techniks holders achieve 0.0001" or less T.I.R. as measured from the taper to the collet pocket. Taper is ground to AT3 accuracy or better.

Features Tech Specs

Features

Back To Top
    • Balanced to 40,000 RPM at G2.5
    • Certified for accuracy and balance
    • "Power Coat" collet nut included

Tech Specs

Back To Top
Gage Length-Face Contact (in) 2.47
Overall Diameter (in) 1.5
Overall Length (in) 4.11
Overall Length (mm) 104.4
Capacity Range (in) 0.039" - 0.75"
Lock Nut Diameter (in) 1.65
Body Diameter-Workpiece Side (in) 1.654
Gage Length (in) 2.56
Gage Length (mm) 65
Overall Diameter (mm) 38
Unit of Tool Metric or Inch
Collet Series ER25
Lock Nut Diameter (mm) 41.9
Brand Techniks
Capacity Range (mm) 1 - 19.1mm
Body Diameter-Workpiece Side (mm) 42
Style Single Ended
Type V-Flange Collet Chuck
Gage Length-Face Contact (mm) 62.8
Material 8620 Steel
Balanced to 40,000 RPM at G2.5
Taper ISO25
