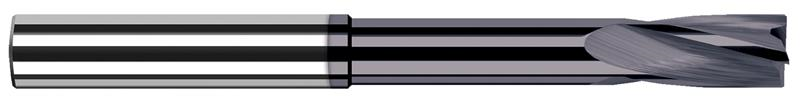

0.1406 in. (9/64) Cutter Diameter x 0.5620 in. (9/16) Flute Length x 1.1250 in. (1-1/8) Reach 4 Flute AlTiN Coated Carbide Flat Bottom Counterbore

  • Item Code: 25509-C3
  • Brand: Harvey Tool
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Undersized neck to avoid heeling
    • Flat Bottom (No Dish) design allows spot facing or counterboring on irregular surfaces
    • Ideal for castings, rounded parts, concaved or drafted surfaces
    • Can be used for flat bottom reaming or straightening misaligned holes
    • Center cutting
    • Ground with full cylidrical margin (not side cutting)
    • 15 degree helix
    • 4 Flutes
    • Solid carbide
    • CNC ground in the USA

Tech Specs

Back To Top
Decimal Cutting Diameter 0.1406"
Neck Diameter 0.1200"
Number of Flutes 4
Shank Diameter 0.1875" (3/16)
Material Solid Carbide
Brand Harvey Tool
Coating/Finish AlTiN
Flute Length 0.5620" (9/16)
Fractional Cutting Diameter 9/64"
Overall Length 3.0000" (3)
Overall Reach 1.1250" (1-1/8)
