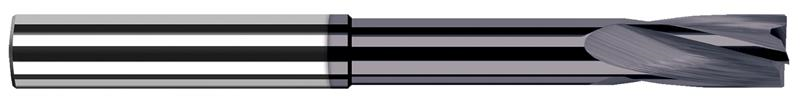

0.1719 in. (11/64) Cutter Diameter x 0.6250 in. (5/8) Flute Length x 1.3750 in. (1-3/8) Reach 4 Flute AlTiN Coated Carbide Flat Bottom Counterbore

  • Item Code: 25511-C3
  • Brand: Harvey Tool
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Undersized neck to avoid heeling
    • Flat Bottom (No Dish) design allows spot facing or counterboring on irregular surfaces
    • Ideal for castings, rounded parts, concaved or drafted surfaces
    • Can be used for flat bottom reaming or straightening misaligned holes
    • Center cutting
    • Ground with full cylidrical margin (not side cutting)
    • 15 degree helix
    • 4 Flutes
    • Solid carbide
    • CNC ground in the USA

Tech Specs

Back To Top
Flute Length 0.6250" (5/8)
Number of Flutes 4
Coating/Finish AlTiN
Neck Diameter 0.1460"
Shank Diameter 0.1875" (3/16)
Brand Harvey Tool
Overall Length 3.0000" (3)
Overall Reach 1.3750" (1-3/8)
Fractional Cutting Diameter 11/64"
Material Solid Carbide
Decimal Cutting Diameter 0.1719"
