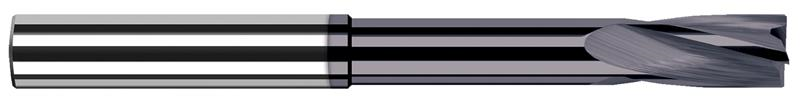

0.2362 in. (6 mm) Cutter Diameter x 0.8750 in. (7/8) Flute Length x 1.8750 in. (1-7/8) Reach 4 Flute AlTiN Coated Carbide Flat Bottom Counterbore

  • Item Code: 2556M-C3
  • Brand: Harvey Tool
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Undersized neck to avoid heeling
    • Flat Bottom (No Dish) design allows spot facing or counterboring on irregular surfaces
    • Ideal for castings, rounded parts, concaved or drafted surfaces
    • Can be used for flat bottom reaming or straightening misaligned holes
    • Center cutting
    • Ground with full cylidrical margin (not side cutting)
    • 15 degree helix
    • 4 Flutes
    • Solid carbide
    • CNC ground in the USA

Tech Specs

Back To Top
Decimal Cutting Diameter 0.2362"
Material Solid Carbide
Shank Diameter 0.2500" (1/4)
Brand Harvey Tool
Coating/Finish AlTiN
Metric Cutting Diameter 6.00 mm
Neck Diameter 0.2010"
Overall Length 4.0000" (4)
Flute Length 0.8750" (7/8)
Number of Flutes 4
Overall Reach 1.8750" (1-7/8)
