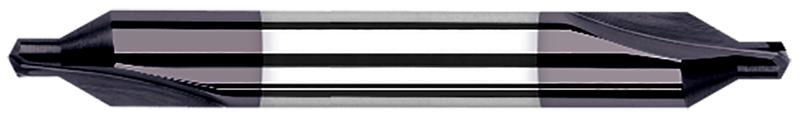

0.0250 in. Drill Diameter x 82 Deg. Included 2 Flute AlTiN Coated Carbide #00 Double Ended Drill and Countersink

  • Item Code: 25610-C3
  • Brand: Harvey Tool
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • 60 degree, 82 degree, and 90 degree included angles - Plain Type
    • 2 Flutes
    • 118 degree included tip angle
    • Double-ended
    • Solid carbide
    • CNC ground in the USA

Tech Specs

Back To Top
Overall Length Fractional 1-1/2"
Single/Double End Double End
Brand Harvey Tool
Angle per Side 41
Number of Flutes 2
Overall Length Decimal 1.5000"
Coating/Finish AlTiN
Length of Cut 0.0900"
Decimal Diameter 0.0250"
Drill Length 0.0250"
Included Angle 82
Material Solid Carbide
Point Angle 118
Shank Diameter 0.1250" (1/8)
Wire Diameter #0
