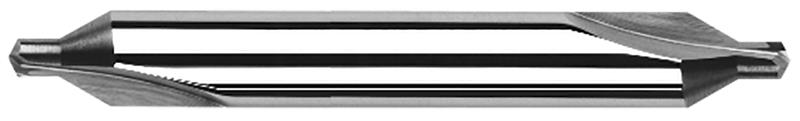

0.0469 in. (3/64) Drill Diameter x 82 Deg. Included 2 Flute Carbide #1 Double Ended Drill and Countersink

  • Item Code: 25630
  • Brand: Harvey Tool
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • 60 degree, 82 degree, and 90 degree included angles - Plain Type
    • 2 Flutes
    • 118 degree included tip angle
    • Double-ended
    • Solid carbide
    • CNC ground in the USA

Tech Specs

Back To Top
Decimal Diameter 0.0469"
Shank Diameter 0.1250" (1/8)
Drill Length 0.0470" (3/64)
Fractional Diameter 3/64"
Coating/Finish None
Length of Cut 0.1060"
Number of Flutes 2
Single/Double End Double End
Overall Length Decimal 1.5000"
Brand Harvey Tool
Angle per Side 41
Included Angle 82
Material Solid Carbide
Overall Length Fractional 1-1/2"
Point Angle 118
Wire Diameter #1
