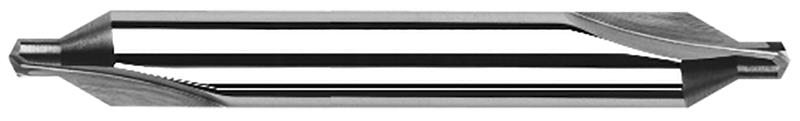

0.1875 in. (3/16) Drill Diameter x 82 Deg. Included 2 Flute Carbide #5 Double Ended Drill and Countersink

  • Item Code: 25670
  • Brand: Harvey Tool
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • 60 degree, 82 degree, and 90 degree included angles - Plain Type
    • 2 Flutes
    • 118 degree included tip angle
    • Double-ended
    • Solid carbide
    • CNC ground in the USA

Tech Specs

Back To Top
Included Angle 82
Shank Diameter 0.4375" (7/16)
Single/Double End Double End
Angle per Side 41
Coating/Finish None
Fractional Diameter 3/16"
Material Solid Carbide
Point Angle 118
Overall Length Decimal 2.7500"
Brand Harvey Tool
Length of Cut 0.3870"
Number of Flutes 2
Decimal Diameter 0.1875"
Wire Diameter #5
Drill Length 0.1870" (3/16)
Overall Length Fractional 2-3/4"
