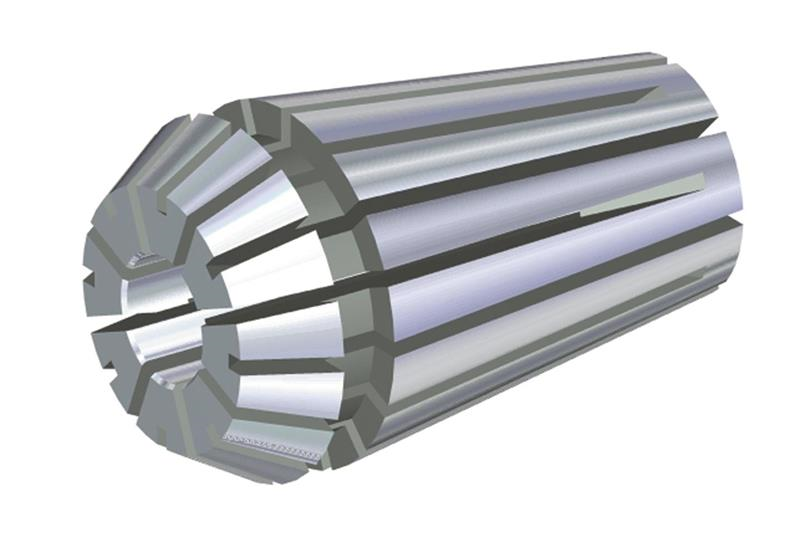

9-10 mm, 0.3543 to 0.3937 Inch Collect Capacity, Series ER25 ER Collet
- Item Code: 25ER100M
- Brand: WIDIA-Erickson
- Unit Size: 1
Description
Series ER25
Single-Angle Standard Collet
Features
Back To Top- Collets and Sleeves
- ER collets are used for holding cylindrical shank tools without flats. These collets do not have coolant through capabilities.
Tech Specs
Back To Top| Body Diameter | 26.00 MM |
|---|---|
| Clamping Diameter (Decimal) | 0.3940 Inch |
| Clamping Diameter (Metric) | 10.00 MM |
| Clamping Hole Length | 34.00 MM |
| Collet Capacity | 9.00 - 10.00 MM |
| Overall Length | 34.00 MM |
| Product Name | Collet |
| Unit of Measure | Metric |
| Brand | WIDIA-Erickson |
| Shank Style | Taper |
| Type | Single Angle |
