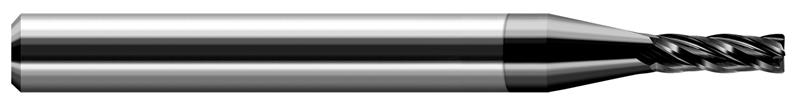

0.0310 in. (1/32) Cutter Diameter x 0.0050 in. Radius x 0.0930 in. (3/32) Length of Cut 4 Flute Amorphous Diamond Coated Carbide Corner Radius End Mill

  • Item Code: 26331-C4
  • Brand: Harvey Tool
  • Unit Size: 1

Description

Stub and Standard

Features Tech Specs

Features

Back To Top
    • Corner radius for improved strength
    • Center cutting
    • Solid carbide
    • CNC ground in the USA

Tech Specs

Back To Top
Length of Cut Multiple (3x)
Overall Length 1.5000" (1-1/2)
Length of Cut 0.0930" (3/32)
Radius Decimal 0.0050"
Fractional Cutting Diameter 1/32"
Coating Amorphous Diamond
Brand Harvey Tool
Decimal Cutting Diameter 0.0310"
Material Solid Carbide
Number of Flutes 4
Shank Diameter 0.1250" (1/8)
