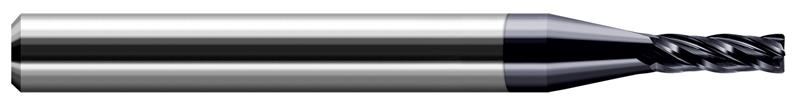

0.0950 in. Cutter Diameter x 0.0050 in. Radius x 0.2850 in. Length of Cut 4 Flute AlTiN Coated Carbide Corner Radius End Mill
- Item Code: 26395-C3
- Brand: Harvey Tool
- Unit Size: 1
Description
Stub and Standard
Features
Back To Top- Corner radius for improved strength
- Center cutting
- Solid carbide
- CNC ground in the USA
Tech Specs
Back To Top| Coating | AlTiN |
|---|---|
| Overall Length | 1.5000" (1-1/2) |
| Length of Cut | 0.2850" |
| Material | Solid Carbide |
| Decimal Cutting Diameter | 0.0950" |
| Length of Cut Multiple | (3x) |
| Radius Decimal | 0.0050" |
| Number of Flutes | 4 |
| Shank Diameter | 0.1250" (1/8) |
| Brand | Harvey Tool |
