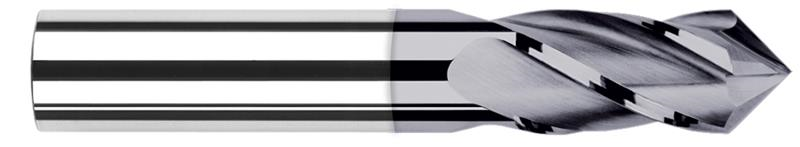

0.3125 in. (5/16) Cutter Diameter x 0.8120 in. (13/16) Length of Cut x 82 Deg. Included Mill Style 4 Flute AlTiN Coated Carbide Drill/End Mill

  • Item Code: 26520-C3
  • Brand: Harvey Tool
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Designed for Chamfering, Milling, and Some Spotting Applications
    • Not recommended for drilling Steel
    • 4 flutes (two flutes to center, two flutes cut back)
    • Solid Carbide
    • CNC ground in the USA

Tech Specs

Back To Top
Coating AlTiN
Decimal Diameter 0.3125"
Included Angle 82
Length of Cut 0.8120" (13/16)
Overall Length 2.5000" (2-1/2)
Number of Flutes 4
Angle per Side 41
Fractional Diameter 5/16"
Length of Cut Multiple (3x)
Brand Harvey Tool
Material Solid Carbide
Shank Diameter 0.3125" (5/16)
Web Thickness 0.0070"
