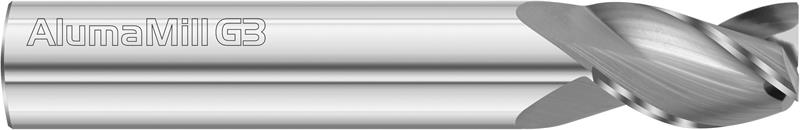

4.00mm (.1575) 3-Flutes, High Helix Solid Dura-Carb Series 3833 AlumaMill G3 End Mill- Square/ Stub
- Item Code: 27164-FULLERTON
- Brand: Fullerton
- Unit Size: 1
Description
Fullerton's newest addition to the AlumaMill lineup. The 3833 AlumaMill G3 uses advanced flute shape and relief form generates superior wall finishes. The unique wiper geometry also produces excellent floor finishes. The G3€™s sinuous end gash ideal for aggressive plunging and ramping speeds. Stocked uncoated and is available with Fulcoat 5 or Fulcoat 19 coatings. Special variations available in 2 weeks.
Features
Back To Top- Square, Ball and Radius End
- 3 Flutes
- 37.5� High Helix
- Single End
- Right Hand Spiral
- Right Hand Cut
- Available in Various Flute and Overall Lengths
- Standard Uncoated and FC-19 Coating
- Inch Based Tools
- Dura Carb (Micrograin)
- Shank Diameter Tolerance: h6
- Cutter Diameter Tolerance: +.0000�� -. 0005�� / +0.000 -0.013mm
- Some Items are made to order and not planned as a normal stocked item, when checking stock this will be indicated
Tech Specs
Back To Top| End Type | Square End |
|---|---|
| Overall Length (Decimal) | 1.9685 |
| Series | 3833 |
| Coating/Finish | None |
| Decimal Diameter | 0.1575" |
| Flute Length (Decimal Inch) | 0.3150 |
| Coolant Through | No |
| Overall Length (mm) | 50.00 |
| Brand | Fullerton |
| Length | Stub |
| Metric Diameter | 4.00 mm |
| Number of Flutes | 3 |
| Shank Diameter (Decimal) | 0.1574 |
| Flute Spiral Direction | RH |
| Flute Spiral Directon | Right Hand |
| Weldon Flat | No |
| End Cut Type | Square End |
| Shank Diameter (mm) | 4.00 |
| Flute Length (mm) | 8.00 |
| Material | Solid Carbide |
| Point End Type | Square End |
| Tool Style | STB |
