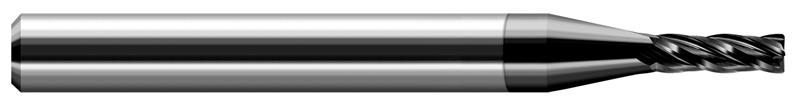

0.1000 in. Cutter Diameter x 0.0100 in. Radius x 0.3000 in. Length of Cut 4 Flute Amorphous Diamond Coated Carbide Corner Radius End Mill
- Item Code: 27299-C4
- Brand: Harvey Tool
- Unit Size: 1
Description
Stub and Standard
Features
Back To Top- Corner radius for improved strength
- Center cutting
- Solid carbide
- CNC ground in the USA
Tech Specs
Back To Top| Brand | Harvey Tool |
|---|---|
| Material | Solid Carbide |
| Coating | Amorphous Diamond |
| Length of Cut | 0.3000" |
| Radius Decimal | 0.0100" |
| Length of Cut Multiple | (3x) |
| Number of Flutes | 4 |
| Shank Diameter | 0.1250" (1/8) |
| Decimal Cutting Diameter | 0.1000" |
| Overall Length | 1.5000" (1-1/2) |
