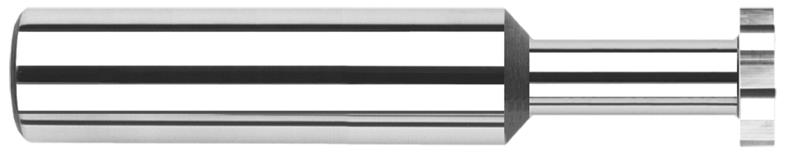

0.0780 in. (5/64) Cutter Diameter x 0.0100 in. Width x 0.1180 in. Neck Length 4 Flute Carbide Square Keyseat Cutter

  • Item Code: 27310-HARVEY
  • Brand: Harvey Tool
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Keyseat Cutters Down to 1/16" Diameter
    • Both sides of cutter are dished for clearance
    • Solid carbide
    • CNC ground in the USA

Tech Specs

Back To Top
Number of Flutes 4
Overall Length 1.5000" (1-1/2)
Radial Depth of Cut 0.0180"
Reach Multiple (1.5x)
Material Solid Carbide
Decimal Diameter 0.0780"
Shank Diameter 0.1250" (1/8)
Neck Diameter 0.0390" (1 mm)
Neck Length 0.1180"
Brand Harvey Tool
Coating/Finish None
Cutter Width 0.0100"
Fractional Diameter 5/64"
Type I
