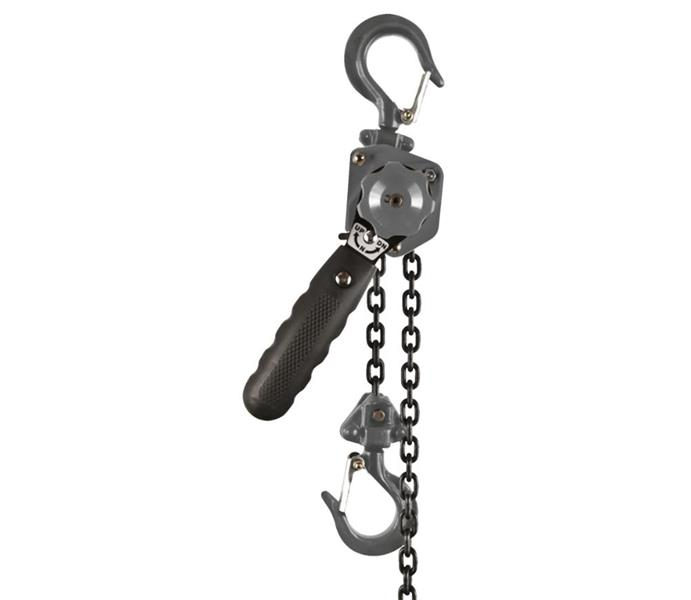

5 ft. Lift x 1/4 Ton, JLP-A Series, Mini-Puller
- Item Code: 287100
- Brand: Jet
- Unit Size: 1
Description
JET® JLP-A Series lever hoists combine safety, reliability, and durability that are designed to perform in light to medium-duty industrial applications. The patented Brake Wear Indicator increases safety by letting you know when to replace the friction disks. JET® also offers the option of shipyard hooks, virtually eliminating stretched hooks caused by point or tip loading. The JET® JLP-A lever hoist is available in ¼ ton to 6 ton capacities with standard lifts of 5, 10, 15, and 20 feet (custom lifts available). The JET® JLP-A Series is the perfect choice for a contractor grade lever hoist.
Features
Back To Top- Safety
- Weston Style, double pawl brake design splits the load to opposite sides of the ratchet gear for greater load security
- Industrial rated alloy steel hooks rotate 360 degrees for easy rigging| Hooks slowly stretch to indicate an overload situation increasing jobsite safety
- Durability
- Cast steel safety latches are secured with Allen screws and lock nuts
- Grade 80 black oxide coated for added durability
- Needle bearing design increases efficiency and promotes smooth operation
- Compact Design- Smaller body and lightweight design for low headroom applications and use in confined areas
Tech Specs
Back To Top| Gross Weight (lbs.) | 4.6 |
|---|---|
| Handle Length (In.) | 6 |
| Hook Throat Opening (In.) | 1-2/5 |
| Load Chain Dimensions (Mm.) | 4 x 12 |
| Model Number | JLP-025A-5 |
| UPC | 731325473001 |
| Weight (Lbs.) | 4-1/2 |
| Lift per Turn (In.) | 3 |
| Load Capacity (Tons) | 1/4 |
| Number of Falls | 1 |
| Overall Width (In.) | 3-1/9 |
| Headroom (In.) | 8-1/4 |
| Ship Yard Hooks | SV_1375591258806 |
| Country of Origin | CN |
| Overload Protection | No |
| Lever Pull Force (LBF) | 60 |
| Lift (Ft.) | 5 |
| Brand | Jet |
