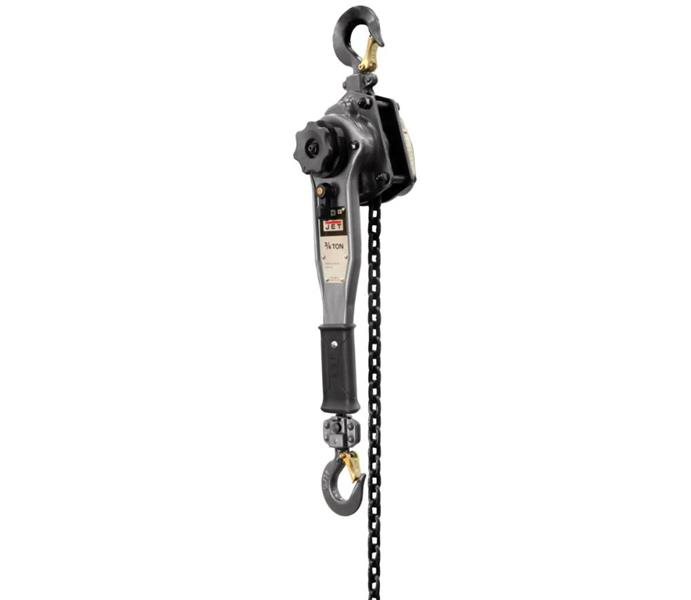

15 ft. Lift x 3/4 Ton, JLP-A Series, Lever Hoist
- Item Code: 287302
- Brand: Jet
- Unit Size: 1
Description
JET® JLP-A Series lever hoists combine safety, reliability, and durability that are designed to perform in light to medium-duty industrial applications. The patented Brake Wear Indicator increases safety by letting you know when to replace the friction disks. JET® also offers the option of shipyard hooks, virtually eliminating stretched hooks caused by point or tip loading. The JET® JLP-A lever hoist is available in ¼ ton to 6 ton capacities with standard lifts of 5, 10, 15, and 20 feet (custom lifts available). The JET® JLP-A Series is the perfect choice for a contractor grade lever hoist.
Features
Back To Top- Safety
- NEW! Innovative brake wear indicator provides a visual indication when the friction disks are worn and need replacing
- NEW! JET’s improved easy free chain design is a two-step, no load, free chaining system. The system permits quicker hoist positioning and take up of slack chain, and is engineered not to free chain under load
- The Weston style double ratchet pawl brake design splits the load to opposite sides of the ratchet gear for greater load security and increased safety
- Industrial rated alloy steel hooks rotate 360 degrees for easy rigging and slowly stretch to indicate an overload situation
- NEW! Redesigned ergonomic grip allows for greater operator control and increased comfort
- Durability
- Secured with Allen screws and lock nuts, the cast-steel safety latches are more durable than stamped steel latches and will not bend out of compliance with lifting regulations
- Optional Shipyard Hook are blunt tip hooks, designed for point loading and virtually eliminate stretched hooks, reducing downtime for maintenance and repair
- Grade 80 black oxide coated load chain for added durability
Tech Specs
Back To Top| Gross Weight (lbs.) | 20.15 |
|---|---|
| Lever Pull Force (LBF) | 31 |
| Model Number | JLP-075A-15 |
| UPC | 731325473087 |
| Country of Origin | CN |
| Overload Protection | No |
| Brand | Jet |
| Weight (Lbs.) | 19 |
| Headroom (In.) | 12-4/5 |
| Hook Throat Opening (In.) | 3 |
| Lift (Ft.) | 15 |
| Load Capacity (Tons) | 3/4 |
| Load Chain Dimensions (Mm.) | 6 x 18 |
| Lift per Turn (In.) | 4/5 |
| Ship Yard Hooks | SV_1375591258806 |
| Handle Length (In.) | 11 |
| Number of Falls | 1 |
| Overall Width (In.) | 5-5/6 |
