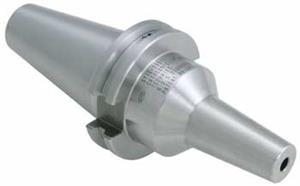

CAT40 x 1/8 Inch Inside Diameter x 3-1/2 Inch Length Precision ShrinkFIT Holder
- Item Code: 29002-TECHNIKS
- Brand: Techniks
- Unit Size: 1
Description
Techniks ShrinkFIT holders have T.I.R. of 0.0001" or better. Balanced to 25,000 RPM at G2.5 tolerance. Ideal for high speed or high torque machining applications. Spindle speeds and feeds are increased to reduce cycle times & increase R.O.I. Each holder is Techniks Certified for accuracy and balance and comes with an individual lab report. Tool life is extended by as much as 700%, stretching your budget farther. Coolant-thru spindle, comes with coolant-thru set screw installed.
Tech Specs
Back To Top| Overall Length (mm) | 157.15 |
|---|---|
| Type | ShrinkFIT Tool Holder |
| Mount | CAT40 |
| Style | Single-Ended |
| Brand | Techniks |
| Nose Diameter (in) | 0.63 |
| Overall Length (in) | 6.19 |
| Shank Range (in) | Exact Size |
| Shank Size (mm) | 3.18 |
| Collet Series | N/A |
| Gage Length-Face Contact (mm) | 85.73 |
| Material | H13 Steel |
| Nose Diameter (mm) | 16 |
| Shank Size (in) | 0.125 |
| Body Diameter (mm) | 22.1 |
| Gage Length (in) | 3.5 |
| Gage Length (mm) | 88.9 |
| Shank Range (mm) | Exact Size |
| Gage Length-Face Contact (in) | 3.38 |
| Body Diameter (in) | 0.87 |
| Overall Diameter (in) | 2.5 |
| Overall Diameter (mm) | 63.5 |
| Unit of Tool | Inch |
