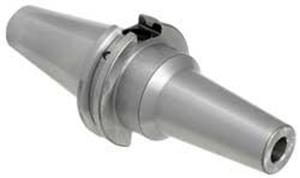

CAT40 x 3/16 Inch Inside Diameter x 5 Inch Length Extended Length ShrinkFIT Holder
- Item Code: 29008-TECHNIKS
- Brand: Techniks
- Unit Size: 1
Description
Techniks ShrinkFIT holders have T.I.R. of 0.0001" or better. Balanced to 25,000 RPM at G2.5 tolerance. Ideal for high speed or high torque machining applications. Spindle speeds and feeds are increased to reduce cycle times & increase R.O.I. Each holder is Techniks Certified for accuracy and balance and comes with an individual lab report. Tool life is extended by as much as 700%, stretching your budget farther. Coolant-thru spindle, comes with coolant-thru set screw installed.
Tech Specs
Back To Top| Body Diameter (in) | 0.71 |
|---|---|
| Body Diameter (mm) | 18.03 |
| Nose Diameter (in) | 0.43 |
| Collet Series | N/A |
| Gage Length-Face Contact (mm) | 123.83 |
| Material | H13 Steel |
| Gage Length-Face Contact (in) | 4.88 |
| Mount | CAT40 |
| Style | Single-Ended |
| Gage Length (in) | 5 |
| Overall Length (in) | 7.69 |
| Shank Range (mm) | Exact Size |
| Type | ShrinkFIT Tool Holder |
| Brand | Techniks |
| Gage Length (mm) | 127 |
| Nose Diameter (mm) | 10.9 |
| Overall Length (mm) | 195.25 |
| Shank Range (in) | Exact Size |
| Shank Size (mm) | 4.76 |
| Overall Diameter (in) | 2.5 |
| Overall Diameter (mm) | 63.5 |
| Shank Size (in) | 0.1875 |
| Unit of Tool | Inch |
