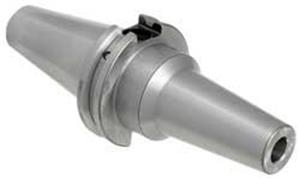

CAT40 x 1/4 Inch Inside Diameter x 3-1/2 Inch Length CoolFLEX Holder
- Item Code: 29011F
- Brand: Techniks
- Unit Size: 1
Description
CoolFLEX holders allow for coolant-thru the spindle or flange. Techniks ShrinkFIT holders have T.I.R. of 0.0001" or better. Balanced to 25,000 RPM at G2.5 tolerance. Ideal for high speed or high torque machining applications. Spindle speeds and feeds are increased to reduce cycle times & increase R.O.I. Each holder is Techniks Certified for accuracy and balance and comes with an individual lab report. Tool life is extended by as much as 700%, stretching your budget farther. Coolant-thru spindle standard, comes with coolant-thru set screw installed.
Tech Specs
Back To Top| Style | CoolFLEX |
|---|---|
| Brand | Techniks |
| Overall Length (in) | 6.19 |
| Shank Range (in) | Exact Size |
| Nose Diameter (mm) | 18 |
| Overall Length (mm) | 157.15 |
| Type | ShrinkFIT Tool Holder |
| Gage Length (in) | 3.5 |
| Gage Length (mm) | 88.9 |
| Shank Size (mm) | 6.35 |
| Mount | CAT40 |
| Shank Size (in) | 0.25 |
| Collet Series | N/A |
| Gage Length-Face Contact (mm) | 85.73 |
| Material | H13 Steel |
| Body Diameter (in) | 1.06 |
| Gage Length-Face Contact (in) | 3.38 |
| Nose Diameter (in) | 0.71 |
| Body Diameter (mm) | 26.92 |
| Shank Range (mm) | Exact Size |
| Overall Diameter (in) | 2.5 |
| Overall Diameter (mm) | 63.5 |
| Unit of Tool | Inch |
